INTO-CPS SysML Profile

Among all possible activities occurring during CPSs design, requirement engineering and architectural modelling are the most abstract of them. In INTO-CPS, an extension of the SysML profile, named INTO-CPS SysML, has been defined and implemented to support these activities.

CPSs are designed to meet a set of desired requirements. These requirements, defined by a range of different stakeholders, specify constraints and/or features of the desired CPS.  In INTO-CPS, we aid this process in two ways. Firstly, SysML model elements may be combined with plain text and Linear Temporal Logic (LTL) to capture CPSs needs. In addition, a rigorous process for CPS requirements engineering has been proposed which aids a CPS engineer to use their own requirement techniques with the INTO-CPS tool chain.

CPS architectures, which at the end must verify specified requirements, are modelled by using the INTO-CPS SysML profile in terms of components, their composition and their connections. A component is “a logical or conceptual unit of the system corresponding to a software or a hardware entity”.  These components and their connections will be used as configuration of FMI 2.0 co-simulation. The INTO-CPS tool chain supports exporting FMI model descriptions to be imported into modelling simulation tools, and also exporting multi-model configurations for co-simulation.

WANT TO LEARN MORE


Take a look at the following document:

Note that currently, the SysML Profile is only supported by Modelio 3.4.1. Porting it to the current version 3.7 is planned for 2018.

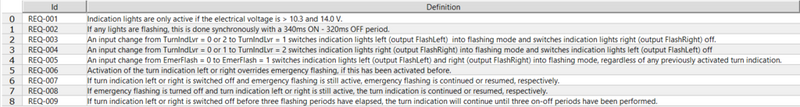

Requirement using SysML plain text.

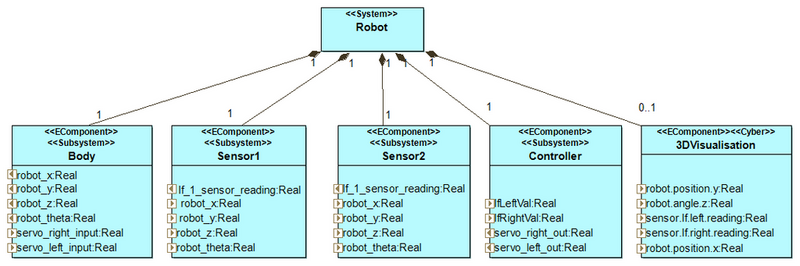

Architecture Modelling.

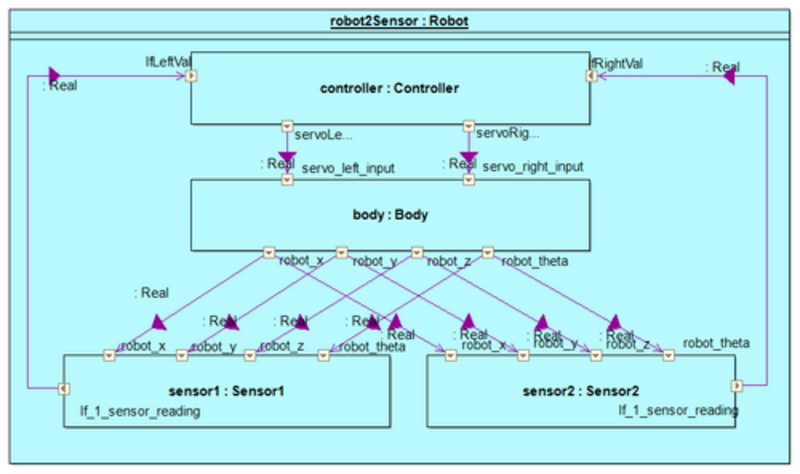

Connection Modelling.

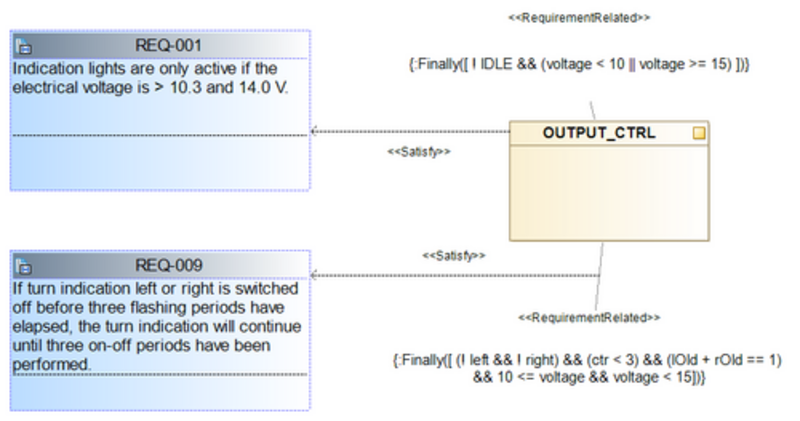

Traceability at SysML level traceability between component and requirements using LTL formula.
